Multi-Viewers
Adding a Tag Multiviewer
1min

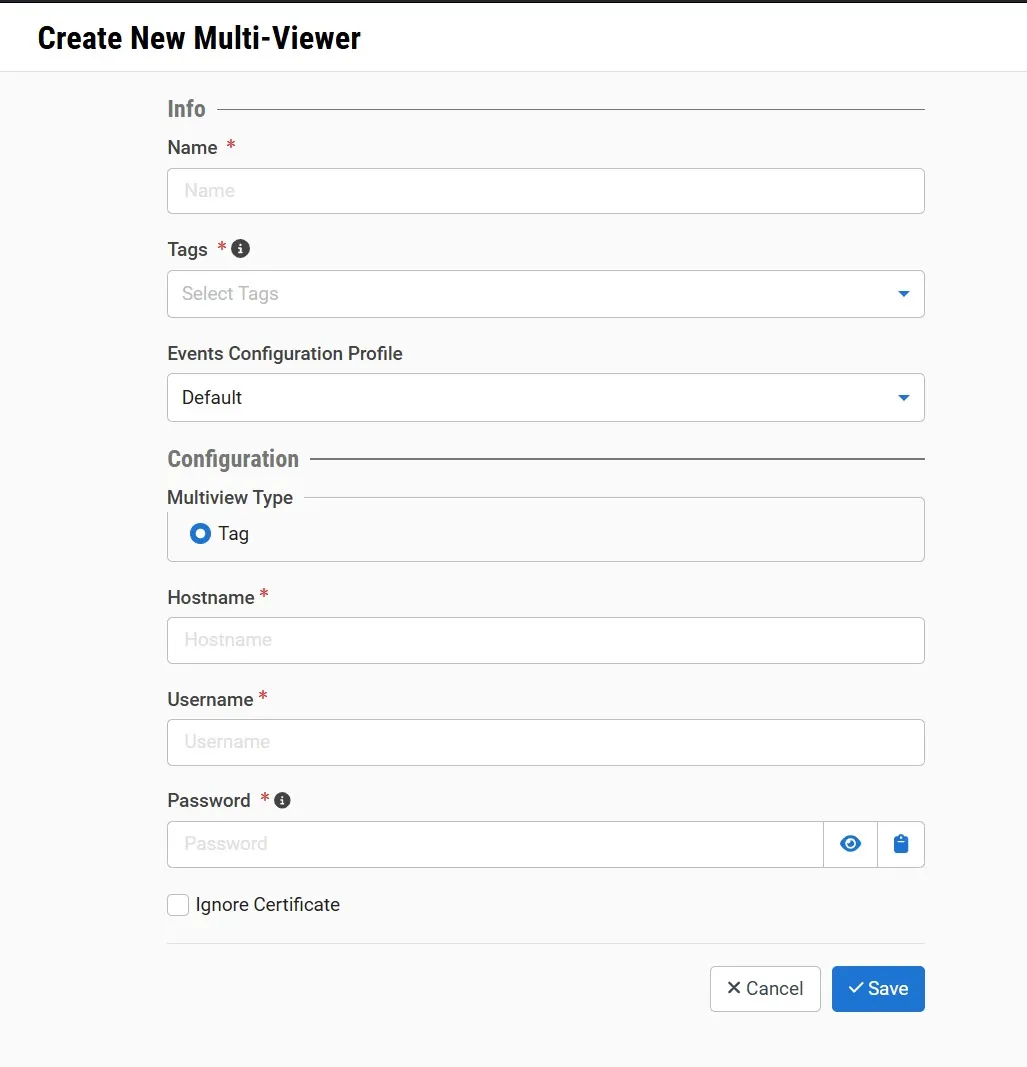

the tag multi viewer can run anywhere you want (e g , on your own hardware, on a cloud instance, etc ) it should be preconfigured with the desired layout configurations and the encoder settings to add a tag multiviewer in the main navigation, click multi viewers click + add the create new multi viewer screen is displayed in the name field, enter a name for the multiviewer in the tags field, select one or more of the predefined tags from the drop down list tags are used for access control by selecting a tag, you are relating this live event to that tag tags are associated with certain roles (through the users & roles screen), and roles, in turn, are associated with users and user groups if you would like to create a new tag, see creating a tag docid\ ypm9tw81ap6nq8stkv4rd in the events configuration profile field, select from the dropdown list the profile that you would like to apply to this multiviewer by default, the default profile is applied events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger under multiview type , make sure that the tag option is selected in the hostname field, enter the hostname or ip address of the tag system in the username field, enter the username of the tag system in the password field, enter the password of the tag system (password level none) click save the tag multiviewer is added to the list of multi viewers and can be used in a multiviewer source for more information, see adding a source multiviewer docid\ xf3n1 avnb9sbyr mvmtm
