Adding a CDI-protocol MediaConnect Source

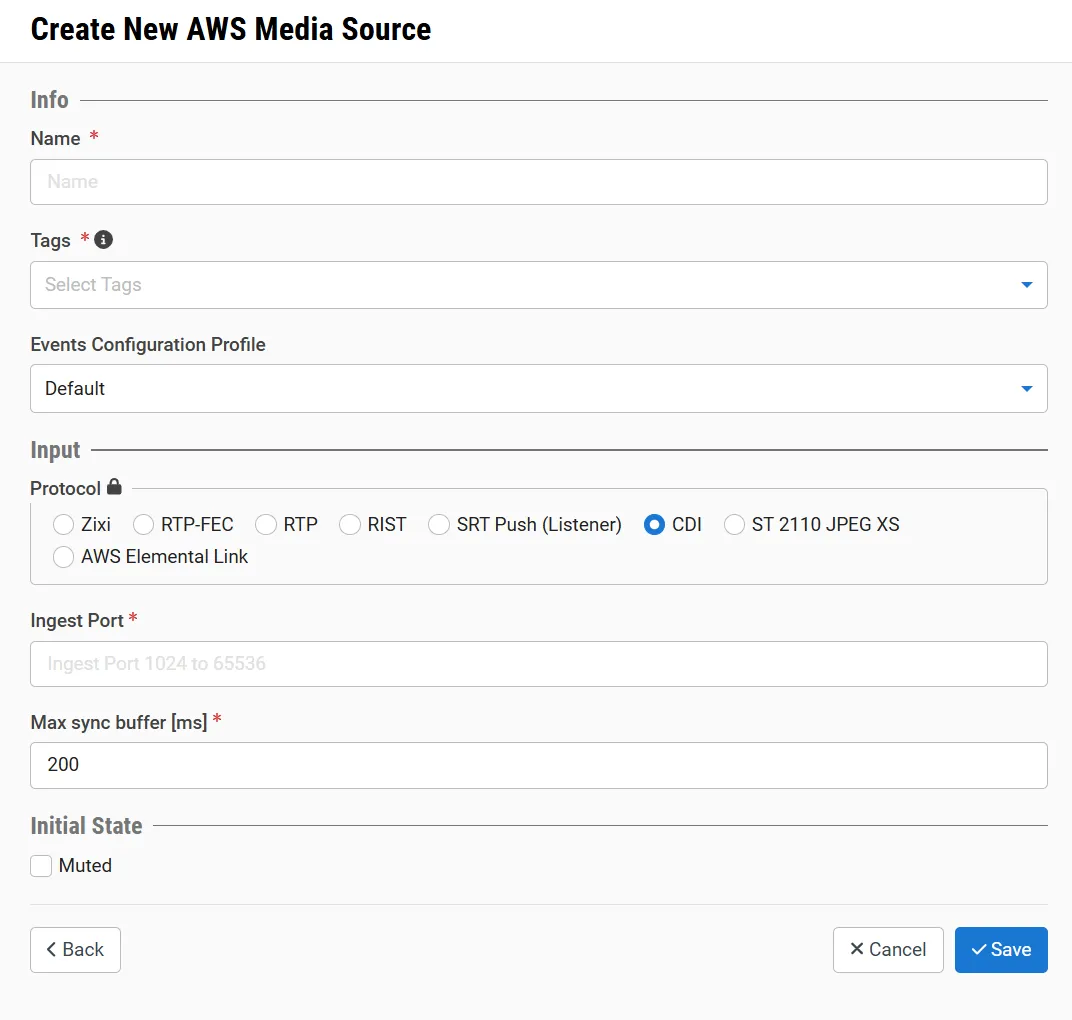

this source is configured on an aws mediaconnect that serves as the ingest object the stream originates from any non zixi device or aws service, which serves as the origin the stream uses the cdi protocol the origin is not managed by zen master the following procedure describes how to create a cdi mediaconnect source in addition, an explanation of each of the configuration parameters is given in the table below to create a cdi mediaconnect source in the main navigation, click sources click + add the create new source window is displayed create new source window under aws media , click on aws mediaconnect the create new aws media source window opens in the info section, in the name field, type a logical name for the source in the tags field, select one or more of the predefined tags from the drop down list tags are used for access control by selecting a tag, you are relating this source to that tag tags are associated with certain roles (through the users & roles screen), and roles, in turn, are associated with users and user groups if you would like to create a new tag, see creating a tag docid\ ypm9tw81ap6nq8stkv4rd in the events configuration profile field, select from the dropdown list the profile that you would like to apply to this source by default, the default profile is applied events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger in the input section, under protocol , select the cdi radio button in the ingest port field, enter the port in the mediaconnect that the flow will listen on for incoming content in the max sync buffer field, specify the size of the buffer that will be used to synchronize incoming source data this value is measured in milliseconds (ms) in the initial state section, select the muted checkbox if you would like to disable error/recovery notifications for this source upon initial configuration you can unmute the source at any time click save parameters table parameter description info name specify a name for the aws media source in zen master tags select one or more of the predefined tags from the drop down list tags are used for access control by selecting an tag, you are relating this source to that tag tags are associated with certain roles (through the users & roles screen), and roles, in turn, are associated with users and user groups if you would like to create a new tag, see creating a tag docid\ ypm9tw81ap6nq8stkv4rd events configuration profile select from the dropdown list the profile that you would like to apply to this source by default, the default profile is applied note events profiles consist of a series of rules that determine precisely how various types of events are logged and what results they trigger input protocol to create a cdi protocol input aws media source, verify that cdi is selected ingest port enter the port in the mediaconnect that the flow will listen on for incoming content max sync buffer s pecify the size of the buffer that will be used to synchronize incoming source data this value is measured in milliseconds (ms) default 200 initial state muted select this checkbox if you would like to disable error/recovery notifications for this source upon initial configuration
