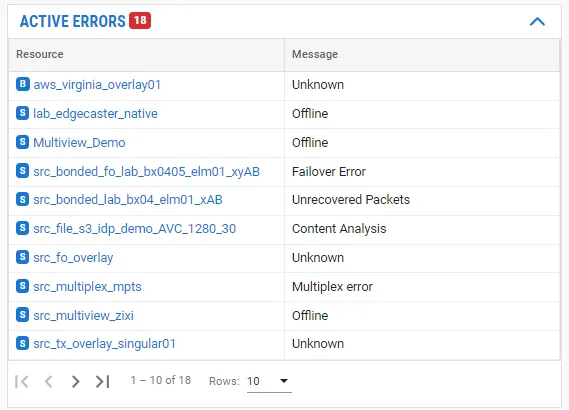

This pane centralizes the errors or warnings that need immediate attention.

The number shown next to the header indicates the number of active errors. Each error listing displays the following information:

Click the name of the resource to open the management screen for the affected resource.

Status

Active Errors
