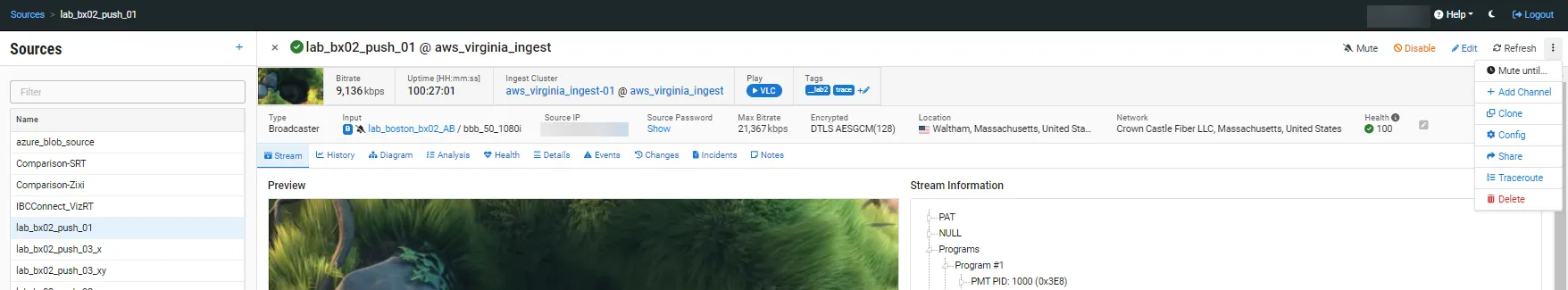

Click on one of the Sources to display information about the Source on the right-pane.

 – disables/activates notification for error/recovery events. Set the date and time when the mute will automatically be cleared by clicking on the down arrow and selecting

-Disabling a Source stops all active streams for that Source without deleting the configuration of the Source.

enables you to edit the Source configuration.

By clicking on the three dots, its possible to choose:

Set a date and time when the mute will automatically be cleared.

 – Create a new Channel for this Source with the parameters automatically populated with this Source's details.

– Create an additional Source based on the settings of the selected Source.

Click to view instructions on how to configure the Source device (e.g., Zixi enabled encoder) to connect to ZEN Master.

– Shares a link to a source object thumbnail page by sending a URL. The link can be accessed by external users, without requiring them to have a ZEN Master account. See

– Shows the traceroutes used by the stream.

You can perform a more limited set of actions on multiple sources by

After you select an action, a confirmation dialog will appear to ensure that you want to complete the action (or cancel it instead):

Source Info Pane

Actions on Sources
