Creating a Source, Channel, and Target

12 min

To help you get started with the ZEN Master API, we will walk through some common tasks here:

Create a Source
Create a Channel
Create a Target

Because there are many ways to use REST APIs, we will do this in two different ways: first, we will create the objects using the popular REST client Postman; next, we will complete the same tasks using a Python script.

Prerequisites

General

Access to the ZEN Master API
An API key
The ZEN Master API Reference (find it in the Documents section of the Customer Portal)
A cluster with at least one Broadcaster set up in ZEN Master

For the Postman section

Postman - you can use either the desktop or online version

If you haven't already set up a ZEN Master API collection in Postman, follow the instructions in Step 2 - Getting Started with Postman.

For the Python section

Python installed on your system

Postman Instructions

Note: you should look at the API Reference for each of the requests. We will only be including required fields here, but there are many more.

Get IDs that will be needed for other requests

First we will get id values for the Broadcaster, Cluster and other objects that will be required for the API requests that we will be making.

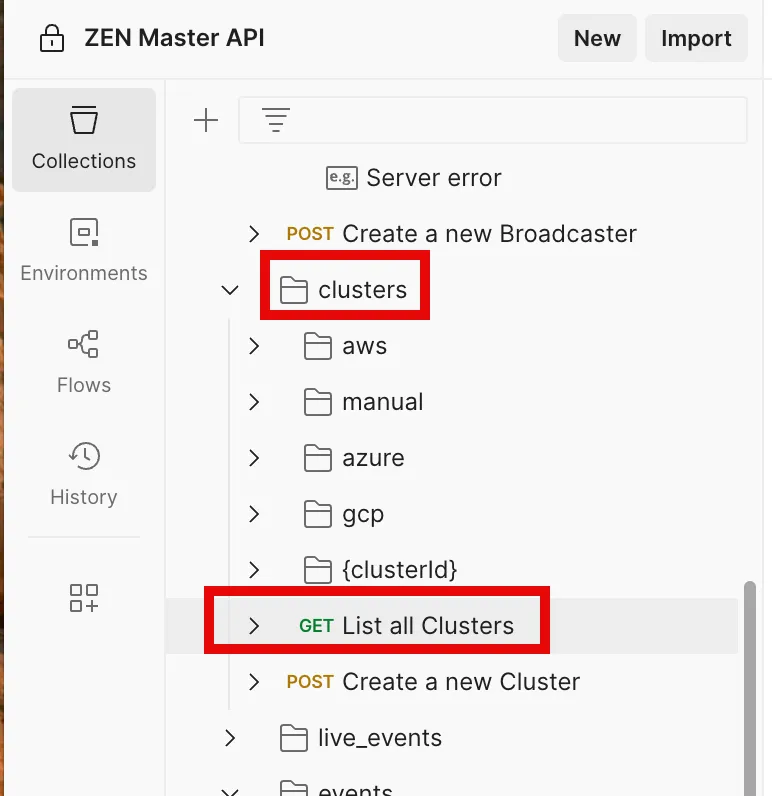

Get the id for your Broadcaster Cluster by going to the clusters > GET List all Clusters request in Postman:

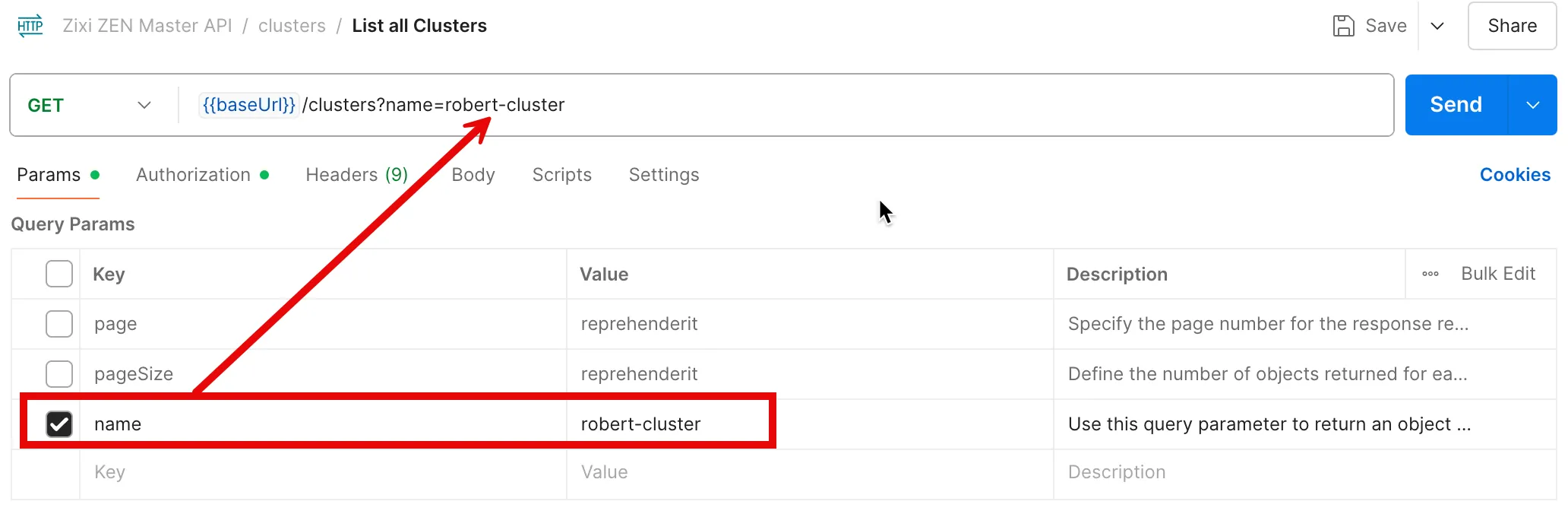

Uncheck all the request parameters - unless you know the exact name of your Cluster, in which case you can set that as the value of the name parameter to return just that object:

With or without the name parameter, click Send to submit the request.

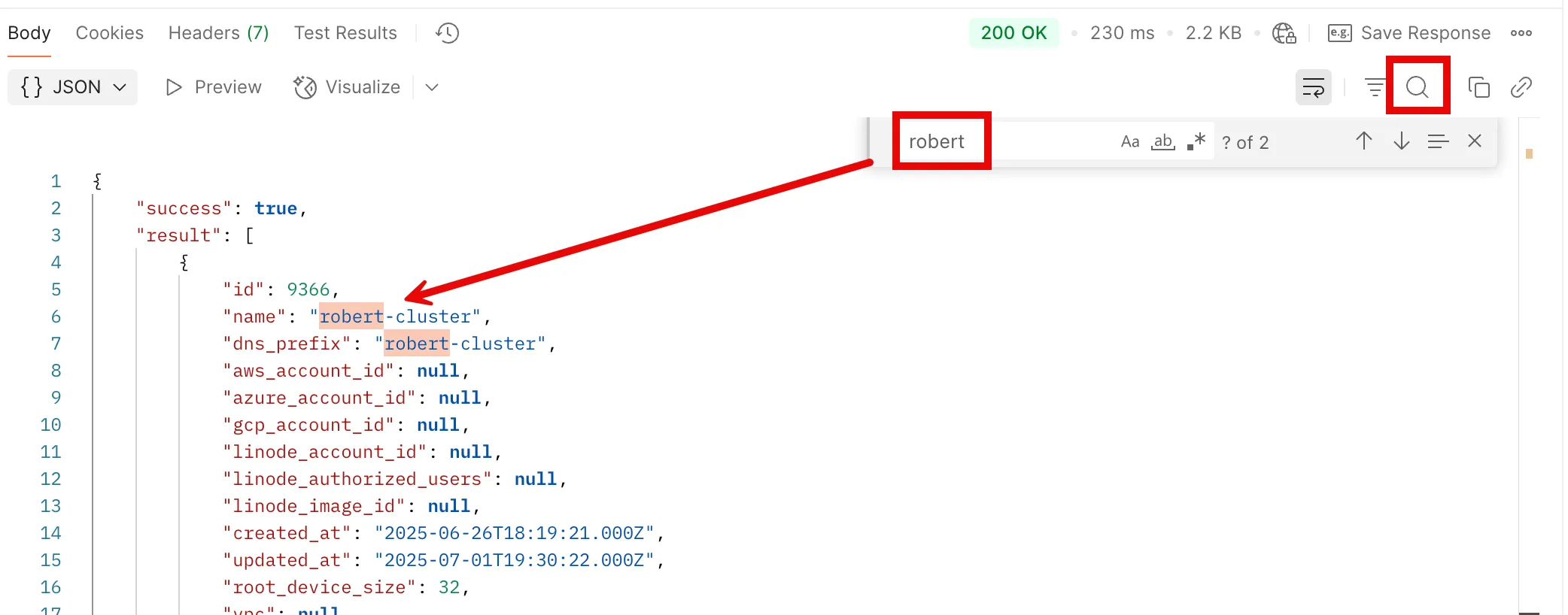

If you used the name parameter, there should be just one object in the response. If not, you will get all the cluster objects, but you can find the one you are looking for by searching the response JSON for some portion of the Cluster name:

Save the Cluster id for use in steps below.

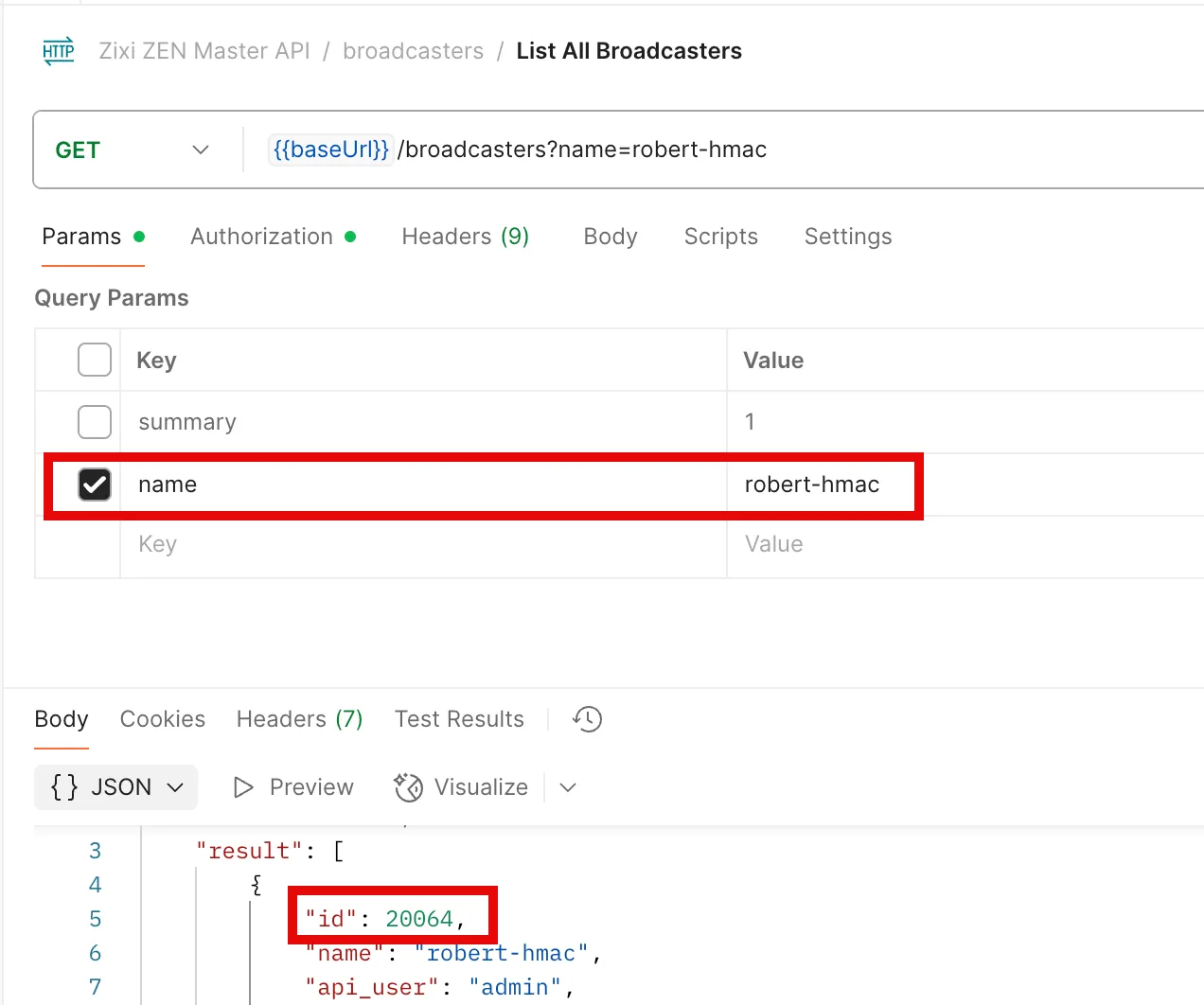

Now do the same for Broadcasters: GET broadcasters, using the name parameter if you have the exact name, or find it in the list and save its id as well:

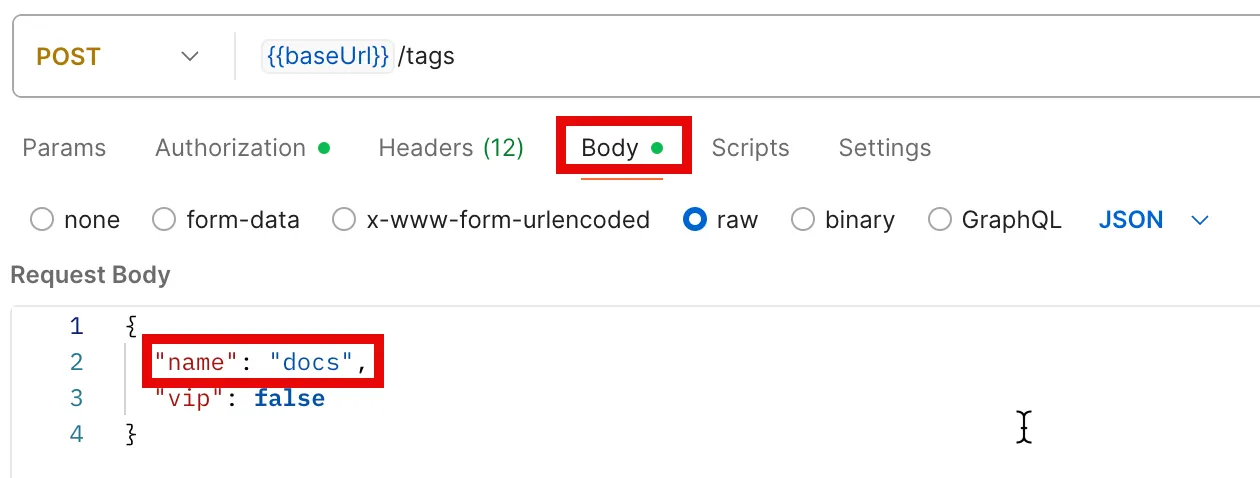

You also need to GET or create a Tag id. To do this, go to the tags section of the API and either GET a list of all tags and choose one, or use the POST request to create a new one. If you create a new one, just go to the Body of the POSTrequest and enter a name for the tag. You will find the id for the Tag in the response after you send the request.

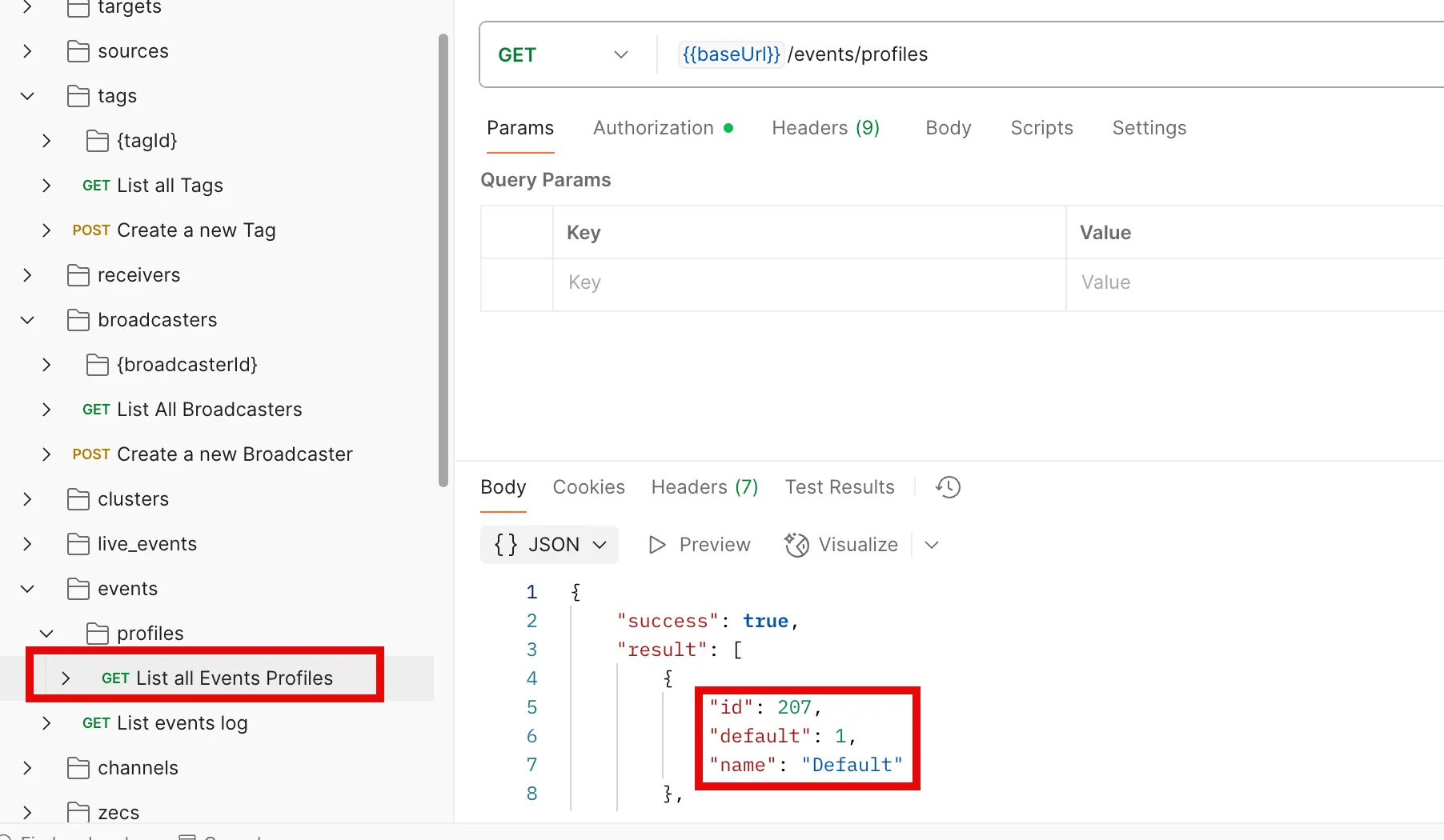

Next, you will need an alerting_profile_id , which is the same thing as an event profile id. Go to events>profiles>GET List all Events Profiles and send the request. Save the id for the Default profile - it will probably be the first one, though it will probably not have the id you see below.

Now you have all the information you need to go on and create your source, channel, and targets.

Create the source

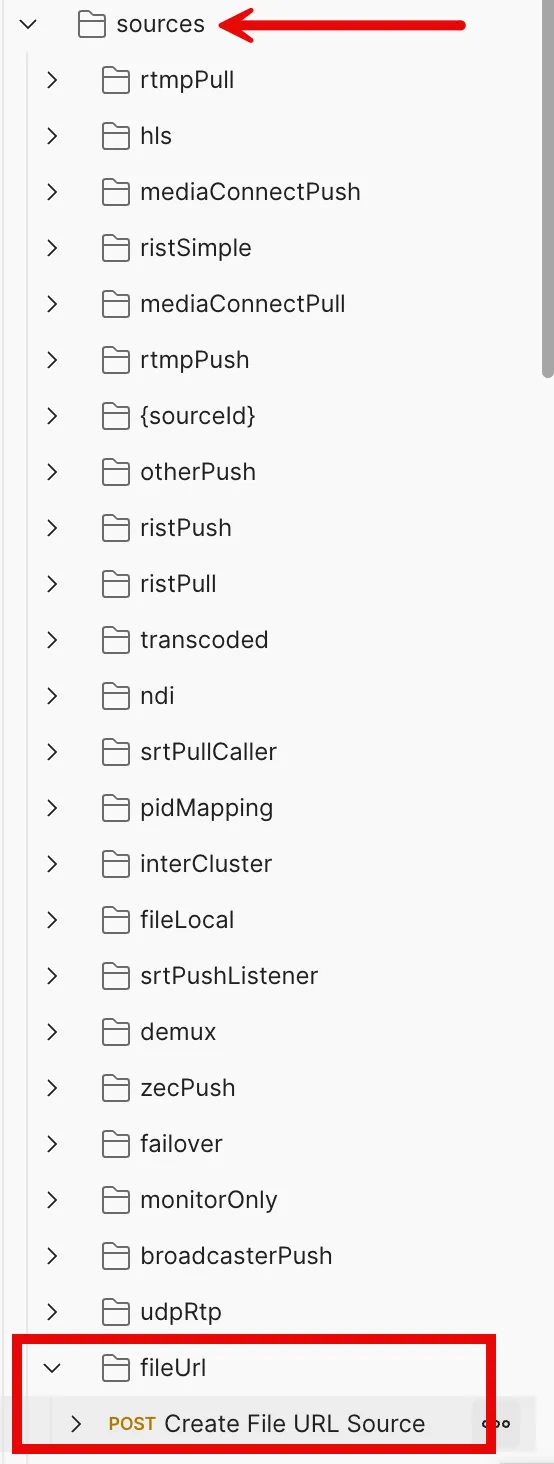

Now go to sources>fileUrl>POST Create File URL Source.

Go to the Body tab and replace the JSON there with the following:

{
  "broadcaster_cluster_id": YOUR_CLUSTER_ID,
  "name": "Test Source PM",
  "protocol": "http_file",
  "resource_tag_ids": [
    YOUR_TAG_ID
  ],
  "target_broadcaster_id": YOUR_BROADCASTER_ID,
  "type": "file",
  "url": "https://zixi-file-sources.s3.amazonaws.com/ts/bbb_AVC_420_8bit_1080p60.ts",
  "alerting_profile_id": YOUR_ALERTING_PROFILE_ID
}

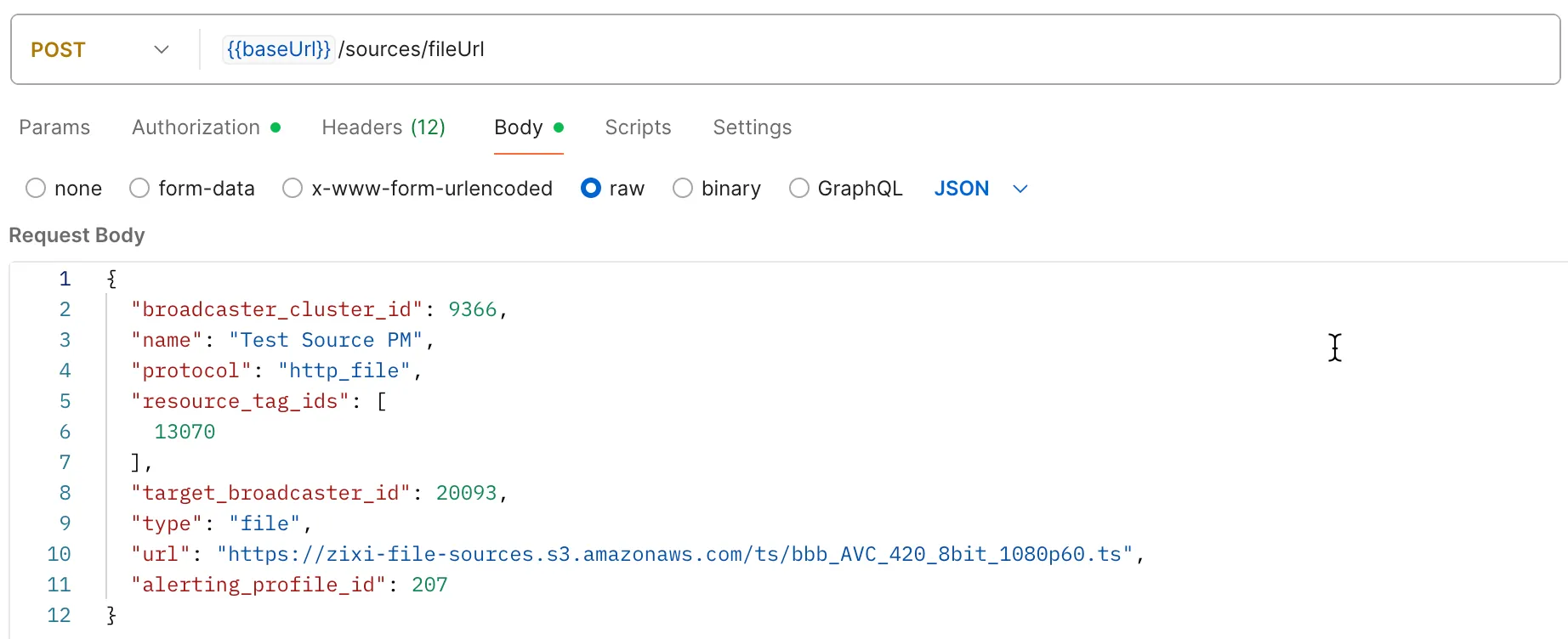

Replace the values in ALL_CAPS with the id values you obtained in the previous section and remove all additional values so that your request body looks something like this:

You should see a success response - if you get an error instead, check the request body to make sure you put in the correct id values for the tag, alerting profile, cluster, and Broadcaster.

When you get a success response, save the returned source id as you will need it for the next section.

Create a pass-through channel

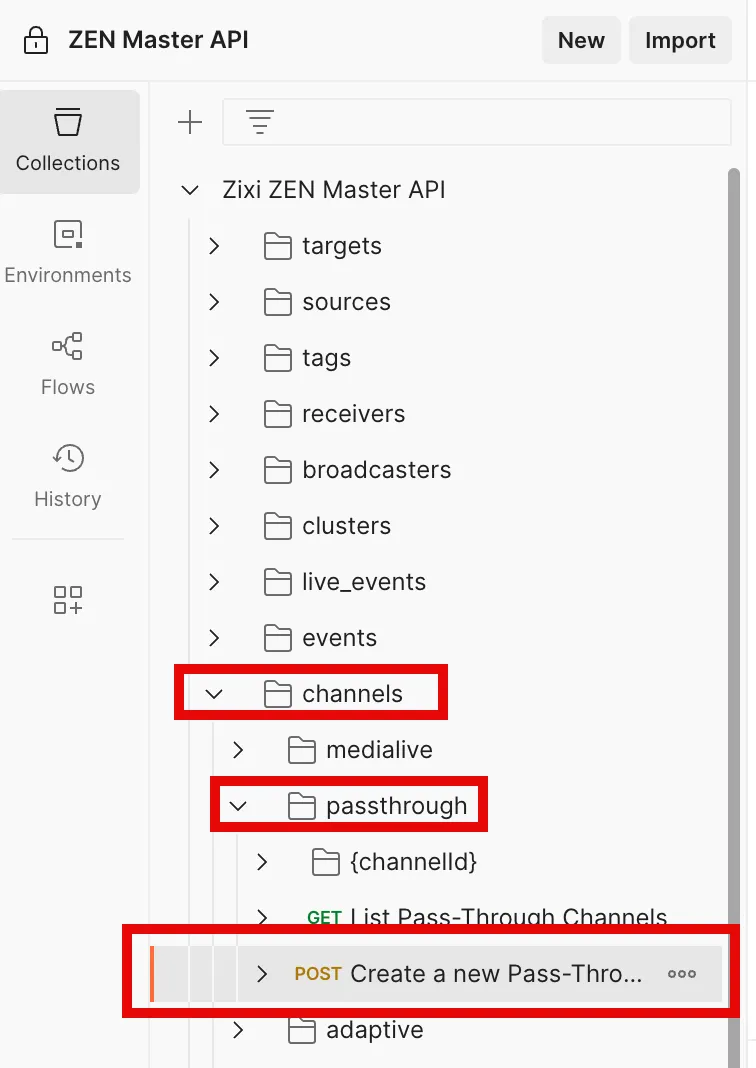

Go to channels>passthrough>POST Create a new Pass-Through Channel:

Go to the Body tab and replace the JSON there with the following:

{
    "name": "Test Channel PM",
    "resource_tag_ids": [
        YOUR_TAG_ID
    ],
    "alerting_profile_id": YOUR_ALERTING_PROFILE_ID,
    "broadcaster_cluster_id": YOUR_CLUSTER_ID,
    "target_broadcaster_id": YOUR_BROADCASTER_ID,
    "sources": [
        {
            "primary": true,
            "source_id": THE_ID_OF_THE_SOURCE_YOU_CREATED
        }
    ]
}

If you forgot to save the source id, you can find it using a GET List Sources request and searching the results for the source name.

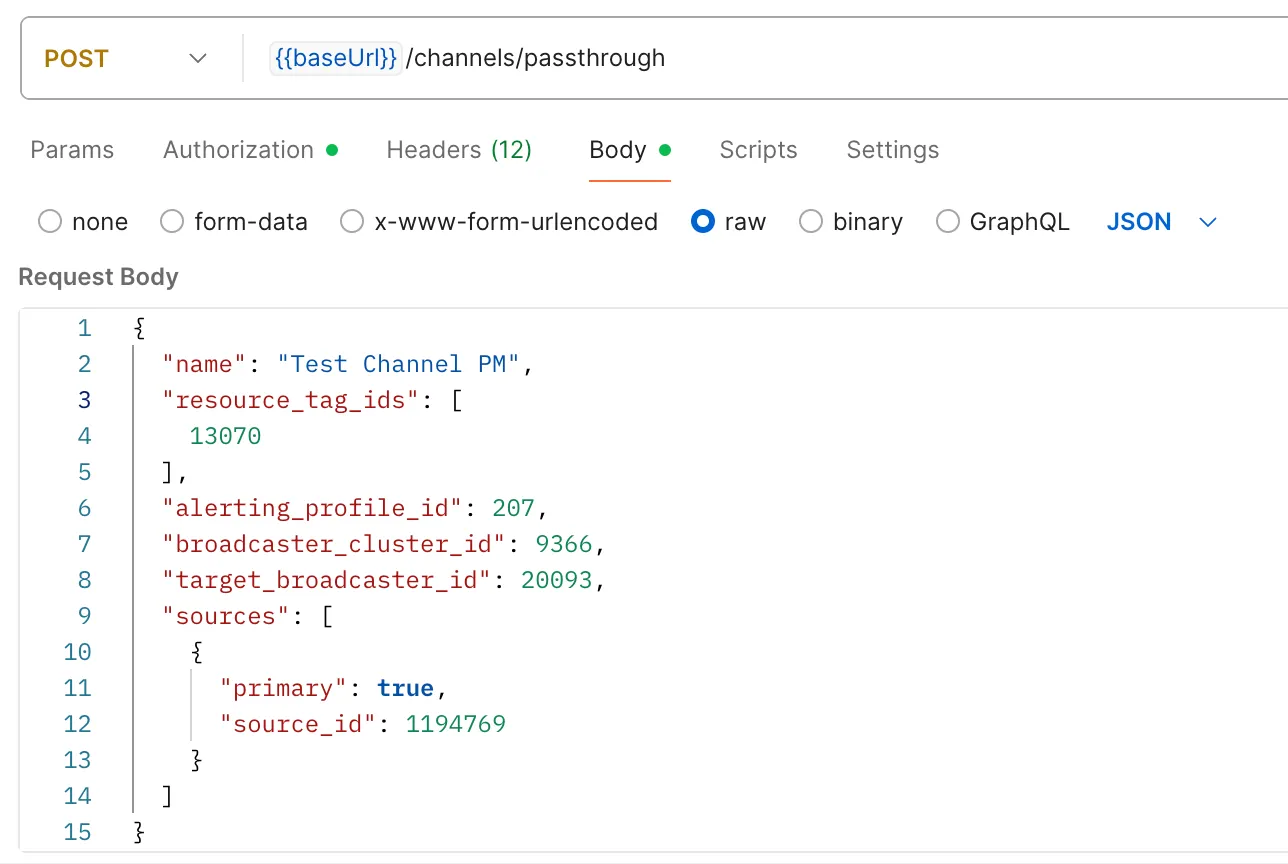

Replace the values in ALL_CAPS with the id values you obtained in the previous section, so that your request body looks something like this:

You should see a success response - if you get an error instead, check the request body to make sure you put in the correct id values for the source, tag, alerting profile, cluster, and Broadcaster.

When you get a success response, save the returned channel id as you will need it for the next section.

Create a UDP target

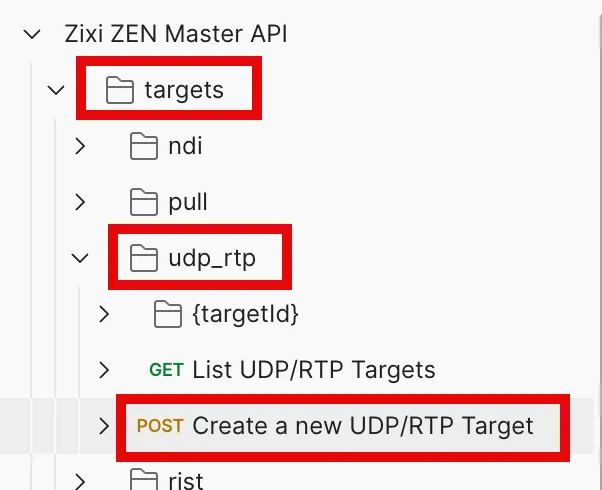

Go to targets>urd_rtp>POST Create a new UDP/RTP Target:

Go to the Body tab and replace the JSON there with the following:

{
    "name": "Test Target PM",
    "resource_tag_ids": [
        YOUR_TAG_ID
    ],
    "alerting_profile_id": YOUR_ALERTING_PROFILE_ID,
    "rtp": false,
    "host": "127.0.0.1",
    "port": 5001,
    "passthrough_channel_id": THE_ID_OF_THE_CHANNEL_YOU_CREATED
}

Note that the host value of 127.0.0.1 is the localhost IP - this assumes that the Broadcaster you are working with is installed on the same machine you are working on. If that is not the case, you will need to use GET List Broadcasters to get the Broadcaster objects again, find your Broadcaster, and get the value of the source_ip field in the response.

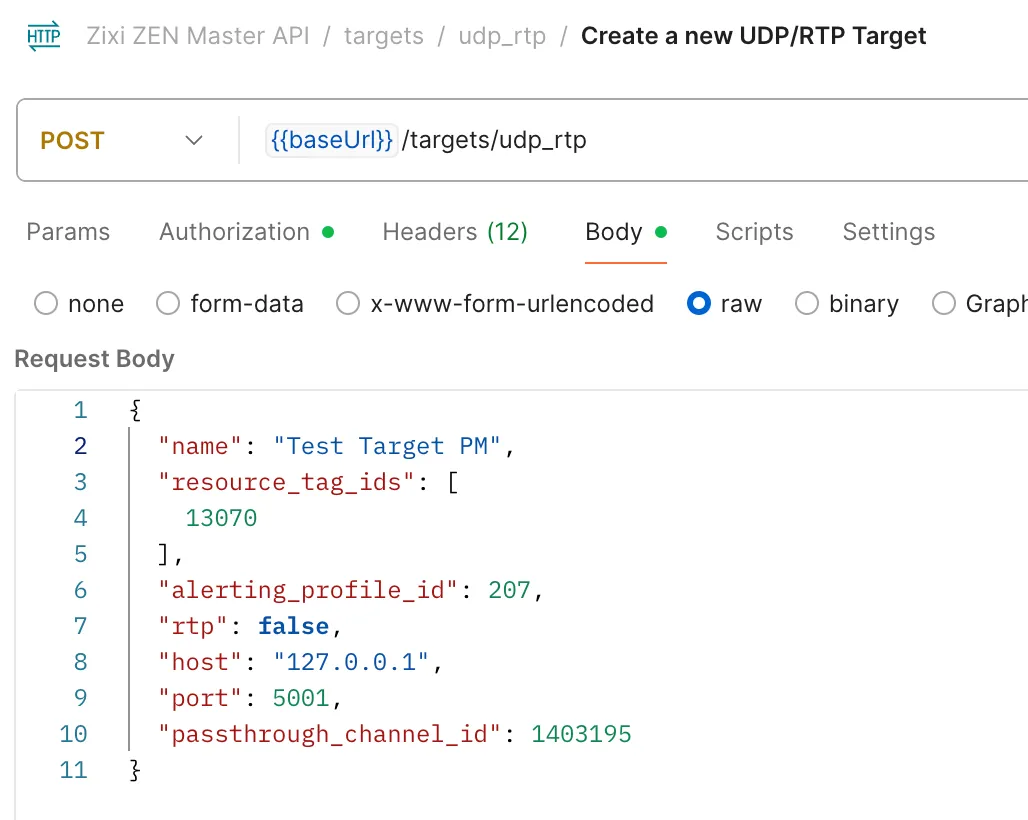

Replace the values in ALL_CAPS with the id values you obtained in the previous section, so that your request body looks something like this:

If you forgot to save the channel id, you can find it using a GET List Pass-Through Channels request and searching the results for the channel name.

You should see a success response - if you get an error instead, check the request body to make sure you put in the correct id values for the channel, tag, and alerting profile.

Python Instructions

The beauty of REST APIs is that you can automate your requests using any language that supports HTTP requests - NodeJS, Java, Swift, whatever you use.

Here we are going to use the popular Python language. Rather than build a script from scratch, we're just going to give you one that is very flexible and that you can use for any ZEN Master API request(s):

# Create Source, Channel, and Target
print("Tech Week: Create Source, Channel, Targets")

import requests
import json

#########################################
# Class for ZM API requests
#########################################

class APIClient:
  def __init__(self, baseUrl, headers):
    self.baseUrl = baseUrl
    self.headers = headers

  def make_request(self, method, endpoint, payload):
    url = self.baseUrl + endpoint
    response = requests.request(method, url, headers=self.headers, data=payload)

    # Parse the JSON response into a Python dictionary
    data = response.json()
    print(f"API request method: {method} success: {data['success']}")
    print(f"Object ID: {data['result']['id']}")
    print(f"Object name: {data['result']['name']}")
    return data

#########################################
# ZEN Master environment
#########################################

baseUrl = "https://api.zen.zixi.com/v2"
apiKey = 'YOUR_API_KEY

headers = {
  'Content-Type': 'application/json',
  'Accept': 'application/json',
  'charset': 'UTF-8',
  'x-api-key': apiKey
}

client = APIClient(baseUrl, headers)

#########################################
# Create File URL Source
#########################################

endpoint = "/sources"

payload = json.dumps({
  "name": "Test Source Python",
  "resource_tag_ids": [
    YOUR_TAG_ID
  ],
  "alerting_profile_id": YOUR_ALERTING_PROFILE_ID,
  "broadcaster_cluster_id": YOUR_CLUSTER_ID,
  "target_broadcaster_id": YOUR_BROADCASTER_ID,
  "protocol": "http_file",
  "type": "file",
  "url": "https://zixi-file-sources.s3.amazonaws.com/ts/bbb_AVC_420_8bit_1080p60.ts"
})

# response = requests.request("POST", url, headers=headers, data=payload)
data = client.make_request("POST", endpoint, payload)
sourceId = data['result']['id']
print(f"Create File URL Source ID: {sourceId}")

#########################################
# Create Pass-Through Channel
#########################################

endpoint = "/channels/passthrough"

payload = json.dumps({
  "name": "Test Channel Python",
  "resource_tag_ids": [
    YOUR_TAG_ID
  ],
  "alerting_profile_id": YOUR_ALERTING_PROFILE_ID,
  "broadcaster_cluster_id": YOUR_CLUSTER_ID,
  "target_broadcaster_id": YOUR_BROADCASTER_ID,
  "sources": [
    {
      "primary": True,
      "source_id": sourceId
    }
  ]
})

data = client.make_request("POST", endpoint, payload)
channelId = data['result']['id']
print(f"Create Pass-Through Channel ID: {channelId}")


#########################################
# Create UDP Target (2)
#########################################

endpoint = "/targets/udp_rtp"

payload = json.dumps({
  "name": "Test Target Python",
  "resource_tag_ids": [
    YOUR_TAG_ID
  ],
  "alerting_profile_id": YOUR_ALERTING_PROFILE_ID,
  "rtp": False,
  "host": "127.0.0.1",
  "port": 5001,
  "passthrough_channel_id": channelId
})

data = client.make_request("POST", endpoint, payload)

#########################################
# End
#########################################

As with the Postman requests, you will need to replace the ALL_CAPS values with your own (but not the source and channel ids, as the script captures those from the responses). See the first section under Postman Instructions above to get the tag, alerting profile, cluster, and Broadcaster ids.

Note that the first two sections of the script define a class for submitting requests and parsing responses, and then to define the ZEN Master Envoronment. The sections after that define the endpoints and request bodies for each request, and then invoke the client object to make the request.

You can run the script in on a command line by navigating to the folder where saved the edited script and running:

python3 {script_name}.py

You may need to install the Python requests and/or json modules, which the script imports.
